Semi-automatic automatic mold release and buckle machine

This machine is a dedicated stator lamination equipment for 200T motors, suitable for motor stator models Y250-Y400

Category:

Motor stator lamination buckle machine

Keywords:

Semi-automatic automatic mold release and buckle machine

Customer service hotline:

+86-13906586333

shengzhou20200626@163.com

Consultation

Product Features:

This machine is a special device for crimping stator laminations of 200T motors, suitable for stator models Y250-Y400.

I. This series of motor stator core crimping machines has a four-column structure.

It is mainly suitable for automatic tensioning, stacking, crimping, and edge folding of stators of Y-series 200-400 series motors. PLC controlled.

II. Main Components of the Machine

This series of crimping machines mainly consists of a pressing cylinder, a crimping cylinder, a tensioning cylinder, a feeding cylinder, a stator clamping oil cylinder, an upper crossbeam, a moving beam, a worktable base, a worktable, a crimping disc, an upper pressure head, a mold (one set of random molds), etc., equipped with a hydraulic station, an electrical cabinet, a rotary worktable, and a roller line.

The above is a crimping machine with a four-column structure with a movable worktable. Our company can also customize the production of four-column crimping machines with lower mold (core expander, sleeve expander) lifting, large-scale pull-down crimping machines with floor-standing worktables, special specifications of conical stator core crimping machines, and Y-series crimping machines below 400.

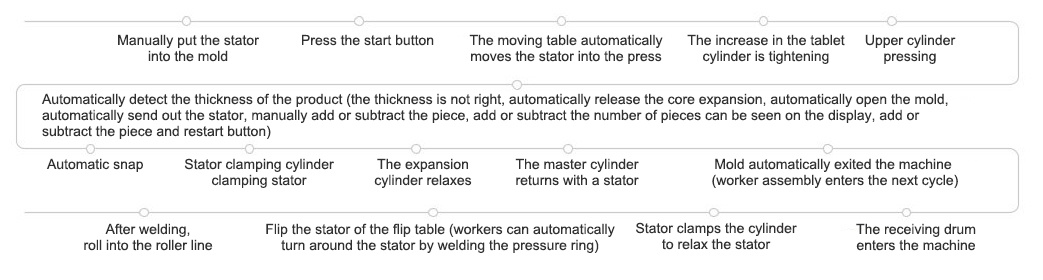

Workflow:

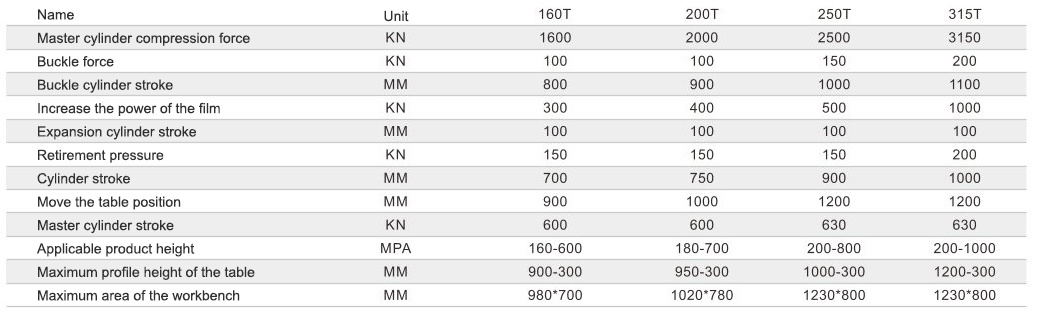

Technical Parameters:
