R & D and production of various hydraulic machinery

Motor rotor aluminum die casting machine

Motor stator lamination buckle machine

Pressure casting machine

Semi-automatic multi-station capping machine

This machine is a 45T three-station stator lamination dedicated equipment, suitable for stator models Y80-Y160

Category:

Motor stator lamination buckle machine

Keywords:

Semi-automatic multi-station capping machine

Customer service hotline:

+86-13906586333

shengzhou20200626@163.com

Consultation

Product Features:

This machine is a 45T three-station stator lamination dedicated equipment, suitable for stator models Y80-Y160.

I. This series of stator core laminating machines has a four-column structure.

Mainly applicable to the automatic tensioning, stacking, laminating and edge folding of stators of Y series 80-200 series motors. PLC controlled.

II. Main components of the machine

This series of laminating machines mainly consists of a clamping cylinder, a laminating cylinder, a tensioning cylinder, a feeding cylinder, a stator clamping oil cylinder, an upper crossbeam, a moving beam, a workbench base, a workbench, a laminating disc, an upper pressure head, a mold (a set of random molds), etc., equipped with a hydraulic station, an electrical cabinet, a rotating workbench and a roller line.

The above is a laminating machine with a four-column structure with a rotating workbench. Our company can also customize the production of four-column two-station laminating machines with lower mold (core expanding, sleeve expanding) lifting, large-scale pull-down laminating machines with floor-standing workbenches, special specifications of conical stator core laminating machines and Y series laminating machines below 400.

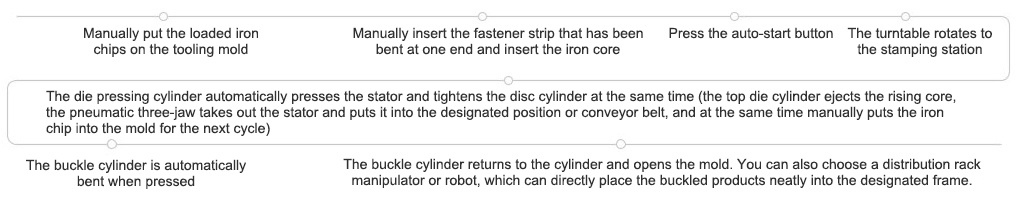

Workflow:

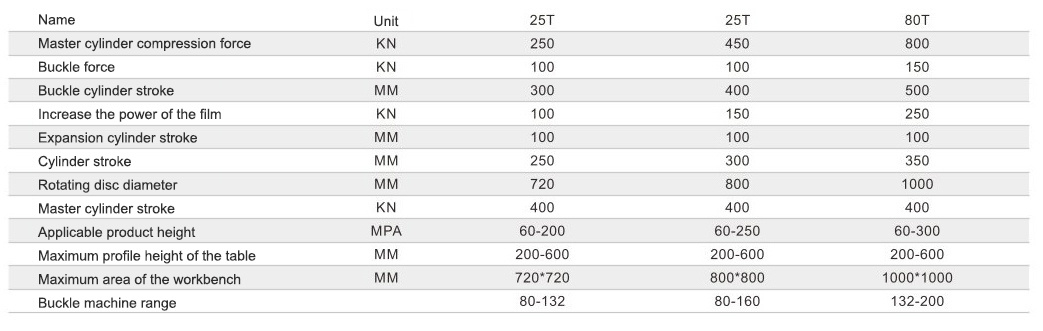

Technical Parameters:

Semi-automatic automatic mold release and buckle machine

35T

Semi-automatic automatic mold release and buckle machine

35T

More products

Fully automatic dual-station aluminum die casting machine

Four-station aluminum die casting machine

Semi-automatic multi-station aluminum die-casting machine in line with shaft press

Semi-automatic TIG welder
