R & D and production of various hydraulic machinery
Semi-automatic multi-station aluminum die-casting machine in line with shaft press
This device is a dedicated aluminum casting machine for casting 80T motor rotors, suitable for rotor models Y63-Y112
Category:
Keywords:
Semi-automatic multi-station aluminum die-casting machine in line with shaft press
Customer service hotline:
Product Features:
This equipment is a special aluminum casting machine for 80T motor rotor casting, suitable for rotor models Y63-Y112
1. This product features simple operation and high intelligence, and is equipped with a conveyor belt to realize the automatic loading and unloading of the rotor as one.
2. All action pressure, speed, required functions and parameters can be set and displayed by the touch screen, and executed with the assistance of servo motors, pressure sensors and PLC.
3. The equipment adopts a multi-station rotary table and is controlled by a numerical control system. It has high control accuracy and is easy to operate. The rotating tooling is driven by a high-energy, low-consumption servo motor.
4. An automatic false shaft exit mechanism is added to realize the integrated process of rotor aluminum casting molding. The main technical parameters are automatically generated, and 20 preset process parameters can be saved.
5. The main technical parameters are automatically generated, and 20 preset process parameters can be saved.
6. The left and right sides of the machine's protective doors are fixed, while the front and rear are pneumatic up-and-down movable. A closed space is formed by the outer sheet metal shell, and a smoke collection device is equipped.
7. The components used in this machine all meet national standards and have advantages such as high performance, easy maintenance, and easy procurement.
According to the functional characteristics of the vertical pressure casting machine, our company has specially designed a hydraulic system, which can effectively reduce the motor power, saving 50-80% energy compared to conventional aluminum casting machines, and has advantages such as low cost and easy procurement of sealing materials.

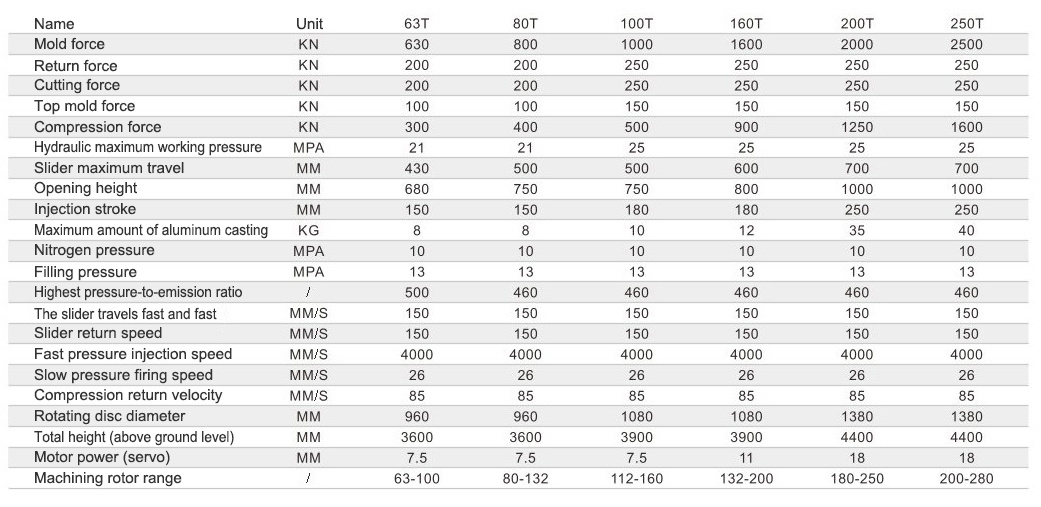

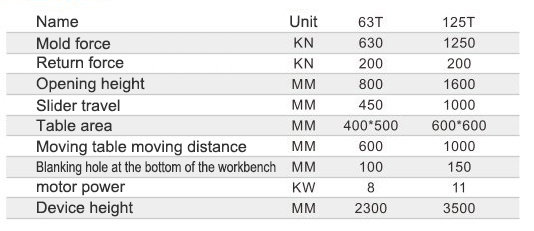

Pressing Machine Parameters:
Technical Parameters:
