R & D and production of various hydraulic machinery
Single station aluminum casting machine in line with shaft press
This machine is an automatic production line for casting 125T motor rotors, suitable for motor Y132-Y180 rotors
Category:
Keywords:
Single station aluminum casting machine in line with shaft press
Customer service hotline:
Product Features:
This machine is an automatic production line for casting 125T motor rotors, suitable for motor Y132-Y180 rotors.
1. This machine features high automation, easy operation, and one-button completion (it only requires manual iron chip input and pressing the start button; the machine will automatically complete all actions).
2. Required functions and parameter settings are controlled by the touch screen and executed by the PLC.
3. All action pressures and speeds are set and displayed on the touch screen and executed with the assistance of a servo motor and pressure sensor.
4. Main technical parameters are automatically generated and can save 20 preset process parameters.
5. The hydraulic oil pump is driven by a servo motor.
6. The oil cylinder seals are made of Taiwanese materials.
7. After rough machining, the surface hardness of the columns reaches HRC35 or more after medium-frequency heat treatment, and after grinding, the surface is hard chrome-plated.
8. Automatic mold feeding, automatic material cutting and mold removal.
9. The left and right sides of the machine's protective doors are fixed, while the front and rear are pneumatic up-and-down movable, providing fully enclosed protection and equipped with a smoke extraction device.
10. This machine uses a piston-type accumulator, which has the advantages of good stability, long service life, easy maintenance, low maintenance cost, and easy procurement of sealing materials.
11. The robotic arm automatically picks up parts, the pouring machine automatically adds aluminum liquid, and the rotor shaft is automatically pressed.
Based on the functional characteristics of the vertical pressure casting machine, our company has specially designed a hydraulic system that can effectively reduce motor power, saving 50-80% energy compared to conventional aluminum casting machines, and the sealing materials are easy to procure.

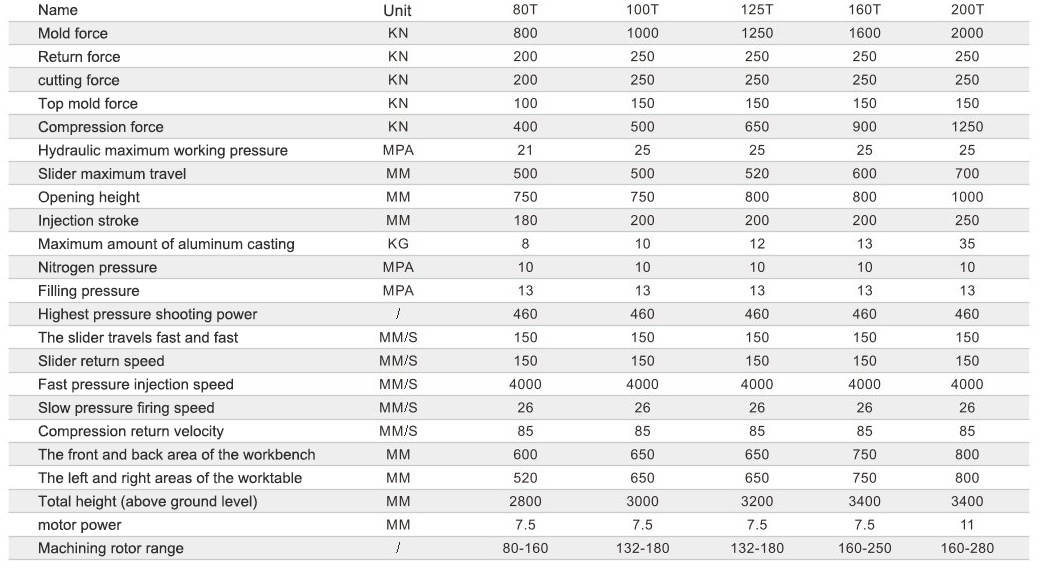

Technical Parameters:
